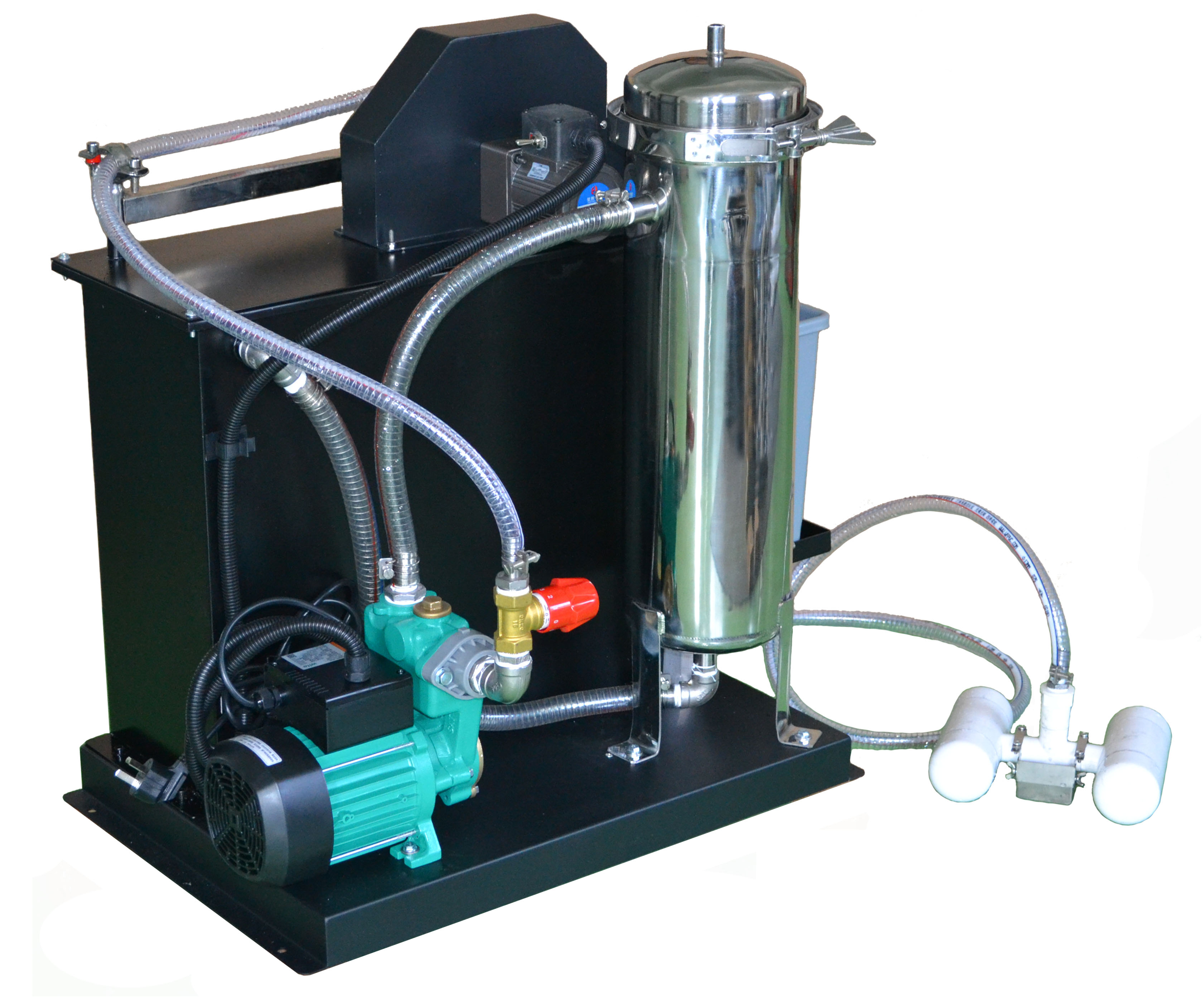

FSCL-1型移动式油水分离过滤机（刮油机、撇油机、浮油捞除机）能够自动将漂浮在切削液表面的污油分离出来，并将切削液过滤。使其延长刀具使用寿命，提高零件光洁度，极大地延长切削液的使用寿命，减少了机床停工时间。



特点：

1、本机能够自动将漂浮在切削液表面的污油分离出来，并将切削液过滤。使其延长

　 刀具使用寿命，提高零件光洁度；

2、有效降低油烟和气味；

3、极大地延长切削液的使用寿命，减少了机床停工时间；

4、大大降低切削液的采购和清理成本；

5、专有的无需更换的油水分离聚结器；

6、紧凑型的浮子装置，便于任何冷却水箱安装；

7、配备有盘式撇油机，自动将废油排到收集桶内，袋式过滤器

　 可以使用户自由选择过滤精度（标准配置精度为25μ）。
8、可选移动或固定式

规 格：

    处理水量：   1 吨/小时

  效    率：   95%

  功    率：   电动泵   25W+ 290W   220V

  压缩空气：   4-6 公斤/平方厘米

  尺    寸：   900X550X900 mm

工作周期：

1、使用油水分离过滤机对每台机床冷却水箱工作3～4小时，而后转到下一台机床；

2、建议每台机床的冷却水箱每周循环过滤一次；

3、油水分离过滤机每班可分离过滤2台机床冷却水箱或每周单班10台机床冷却水箱。



操作方法：

1、使用时将浮子放入冷却水箱中油污集中处漂浮在冷却液表面；

2、将回水管放入冷却水箱出水口处；

3、给油水分离机通电（撇油机220V/25W+水泵290W）工作；

4、油水混合液通过浮子抽进袋式过滤器（精度25μ）过滤，再通过水泵（或隔膜泵）抽到油水分离器内进行油水分离，干净的冷却液返回到冷却水箱内，污油被隔离，通过盘式撇油机将污油排到废油收集桶内。





Fscl-1 mobile oil-water separation filter can automatically separate the oil floating on the cutting fluid surface and filter the cutting fluid. Make it prolong tool service life, improve parts finish, greatly extend the cutting fluid service life, reduce the shutdown time of the machine tool.



Features:



1. The machine can automatically separate the oil floating on the surface of the cutting fluid and filter the cutting fluid. Make it extend



Tool service life, improve the parts finish;



2. Effectively reduce lampblack and smell;



3, greatly extend the cutting fluid service life, reduce the shutdown time of the machine tool;



4, greatly reduce the cutting fluid procurement and cleaning costs;



5. Proprietary oil-water separation aggregators that do not need to be replaced;



6. Compact float device for easy installation of any cooling water tank;



7. Equipped with disk-type oil skimmer, the waste oil will be automatically discharged into the collection barrel and the bag filter



Allows the user to select the filtering accuracy (standard configuration accuracy of 25).



Rules:



Water volume treated: 1 ton/hour



Effective rate: 95%



Power rate: electric pump 25W+ 290W 220V



Compressed air: 4-6 kg/cm2



Inch: 900x550x900mm



Working cycle:



1. Use oil-water separation filter to work the cooling water tank of each machine for 3-4 hours, and then transfer to the next machine;



2. It is suggested that the cooling water tank of each machine be cycled and filtered once a week;



3. Oil-water separation filter can separate and filter 2 machine cooling water tanks per shift or 10 machine cooling water tanks per week in a single shift.







Operation method:



1. When using (when using diaphragm pump, access to compressed air), put the float into the oil concentration in the cooling water tank and float on the surface of the cooling liquid;



2. Put the return pipe into the outlet of the cooling water tank;





3power to oil and water separator (oil skimmer 220V/25W+ water pump 290W) work;



4. The oil-water mixture is pumped through a float into a bag filter (accuracy 25) for filtration, and then pumped through a water pump (or diaphragm pump) into an oil-water separator for oil-water separation. The clean coolant returns to the cooling water tank, and the oily oil is isolated.
