工作原理：

利用油水之间不同重力和表面张力等特性，当刮油盘穿过水面时，吸附并带走表面各种浮油

特点：

1.采用不锈钢圆盘，耐磨持久。

2.含有二次分油盒，油和水分离彻底，无易耗品

3.安装简单，使用方便，易清理

规格：

1.电压：110V/220V/380V

2.功率：25W

3.刮油量：3-15L/H

4.钢盘直径：400mm/300mm

5.重量：11KG

6.此款无罩壳

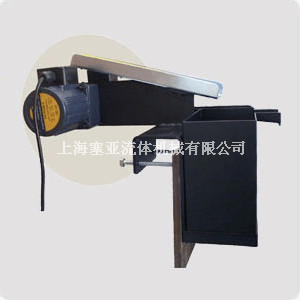

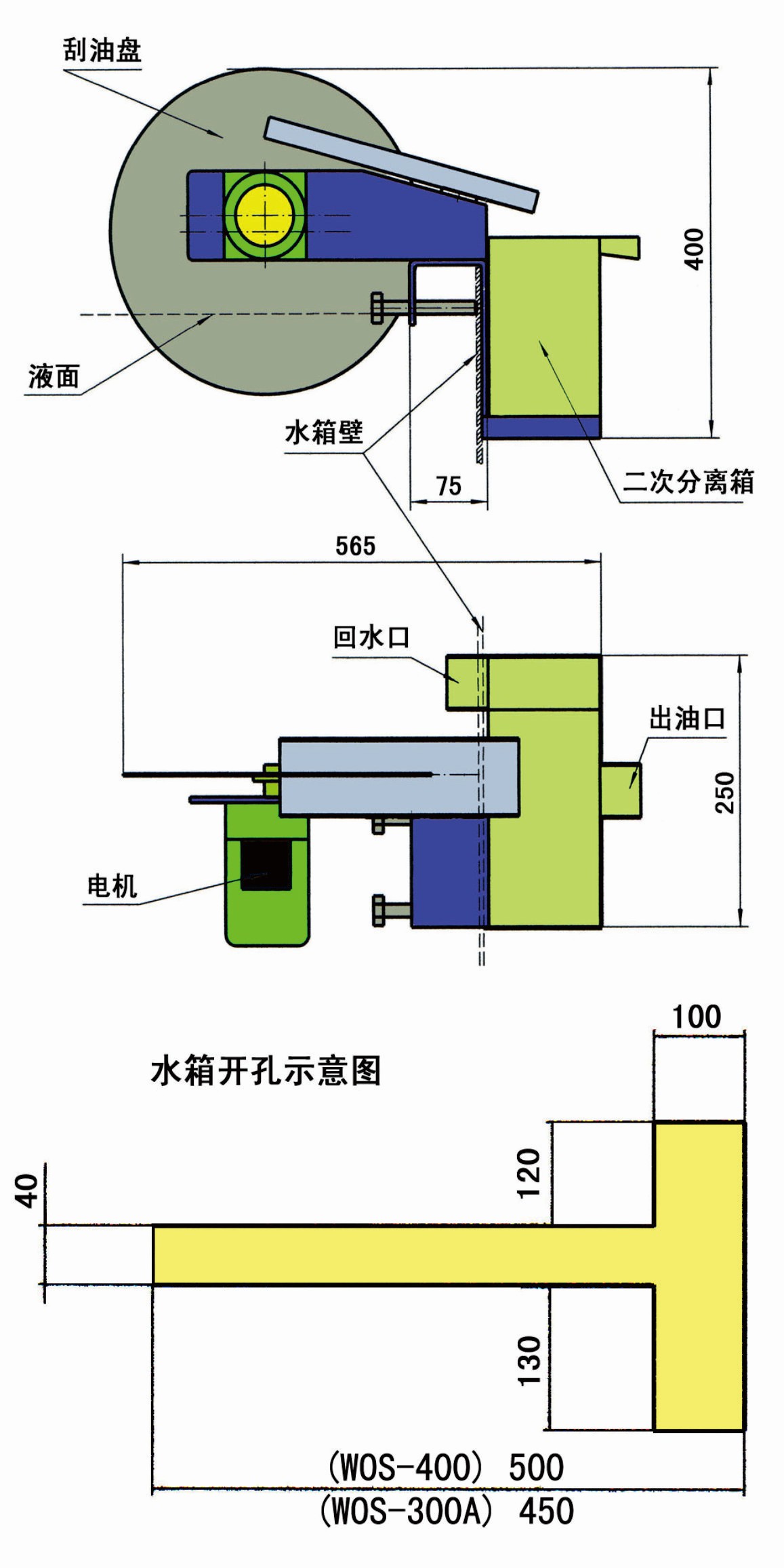

WOS-300A  /  WOS-400 No shell disc type OIL  SKIMMER

Working principle:

Using the characteristics of different gravity and surface tension between oil and water, when the oil pan across the water, to absorb and take away all kinds of oil slick surface

Features:

1. Stainless steel disc is adopted for durable wear resistance.

2. Contain secondary oil separator box, oil and water are separated thoroughly, no consumables

3. Simple installation, easy to use and easy to clean

Specifications:

1. Voltage: 110V/220V/380V

2. Power: 25W

3. Oil scraping amount: 3-15L/H

4. Diameter of steel plate: 400mm/300mm

5. Weight: 11KG

6. This model has no cover case
