特点：
1、本机自带动力,完全不会影响原机械设计结构，安全并且 更为方便；
2、重量轻,体积小,安装方便；
3、入口粗滤网设计，保护油泵，延长使用寿命，粗滤网可 清洗，无需更换；
4、压力控制开关，在滤芯堵塞造成压力升高时，可以自动停机保护；
5、磁力启动开关，可以有效保护电机，防止过载。
特点：
1、本机自带动力,完全不会影响原机械设计结构，安全并且 更为方便；
2、重量轻,体积小,安装方便；
3、入口粗滤网设计，保护油泵，延长使用寿命，粗滤网可 清洗，无需更换；
4、压力控制开关，在滤芯堵塞造成压力升高时，可以自动停机保护；
5、磁力启动开关，可以有效保护电机，防止过载。
使用方法：
SE采用了自带动力方式,不影响原机械油路,适用于低压力结构,安装方便。使用时直接将设备所带软管的一端接在抽油口（带粗滤的接口）,另一端放入待过滤的污油中；同理，出油口（罐下接口）用另一根软管相接，同时软管的另一端接到待盛放干净油的容器中，按动开关设备运行。本机入口处设有粗滤网,可让您清洗方便,同时保护油泵,大大延长机械使用寿命。
|
型号MODEL |
SE-100 |
|
适用油种 Apply to oil |
矿油系列液压油、润滑油 Mineral oil series.The hydraulic oilLubricating oil |
|
使用油温范围 oil temperature range |
0~80℃ |
|
最大过滤流量（L/min） Maximum filtration rate(L/min) |
2.5 |
|
使用粘度范围 Service viscosity range |
9~180cst |
|
压力计 Pressure gauge |
∅40 0~10kgf/c㎡ |
|
出入口径 In diameter |
∅10 |
|
使用滤芯个数 Filter the number |
ME-100×1 |
|
尺寸mm(L×W×H) SIZE |
500×400×450 |
|
重量 WIGHT |
21KG |
|
马达 MOTOR |
单相（三相）1/4HP Single-phase three-phase |

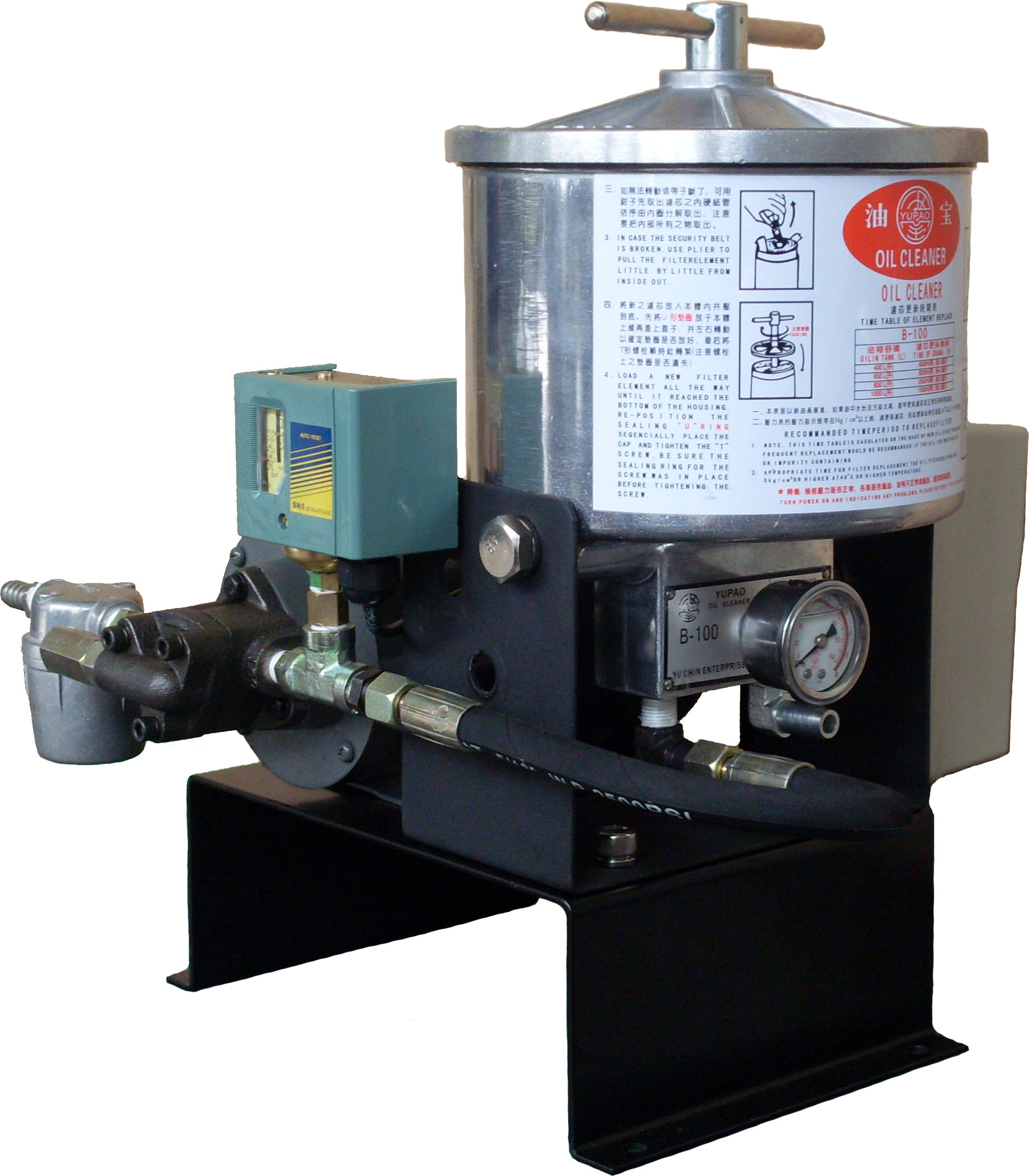

SE-100 Precision oil filter
Features:
1. The machine has its own power, which will not affect the original mechanical design structure, so it is safe and more convenient;
2. Light weight, small volume, easy installation;
3. Design of inlet coarse filter screen to protect oil pump and extend service life. The coarse filter screen can be cleaned without replacement;
4, pressure control switch, in the filter plug caused by pressure increase, can automatically stop the protection;
5. Magnetic starting switch can effectively protect the motor and prevent overload.
Usage:
SE series adopts its own power mode, which does not affect the original mechanical oil circuit. It is suitable for low pressure structure and easy to install. When in use, connect one end of the hose with the equipment directly to the oil suction port (interface with coarse filtering), and put the other end into the dirty oil to be filtered; Similarly, the oil outlet (the connection under the tank) is connected with another hose, and the other end of the hose is connected to the container to hold the clean oil. Press the switch to run the equipment. The entrance of this machine is equipped with coarse strainer, which can make cleaning convenient for you, protect oil pump, and greatly prolong the service life of the machine.
