1.特质亲油疏水不锈钢带

2.体积小巧，适合安装在各类小型数控中心，加工机床之上

3.安装简单，使用方便

4.能耗低，效率高

5.可实现24小时内任意时间自动开闭

6.钢带长度可根据客户提供的A尺寸订制

规格：

1.电压：220V （110V) /   功率：10W

2.刮油量：2L/H

3.钢带宽：50mm

4.重量：2KG

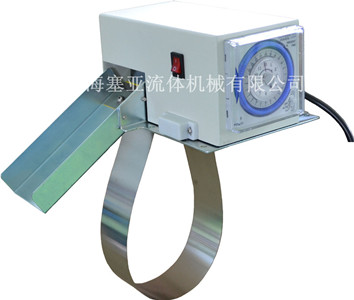

NC-40  OIL  SKIMMER

 Belt type Oil  skimmer  is widely used in CNC machine tools, CNC machining centers and other machine tools in the water, oil floating in emulsion automatic separation, thus extending the life of the coolant, but also extend the service life of the tool, to ensure the processing accuracy.

Working principle:

Using the characteristics of different gravity and surface tension between oil and water, when the wiper belt passes through the water, it sticks and takes away all kinds of floating oil on the surface.

Features:

1. Special oil-wet and hydrophobic stainless steel belt

2. Compact size, suitable for installation in all kinds of small CNC centers, processing machine tools。

3. Easy to install and use

4. Low energy consumption and high efficiency

5. It can automatically open and close at any time within 24 hours

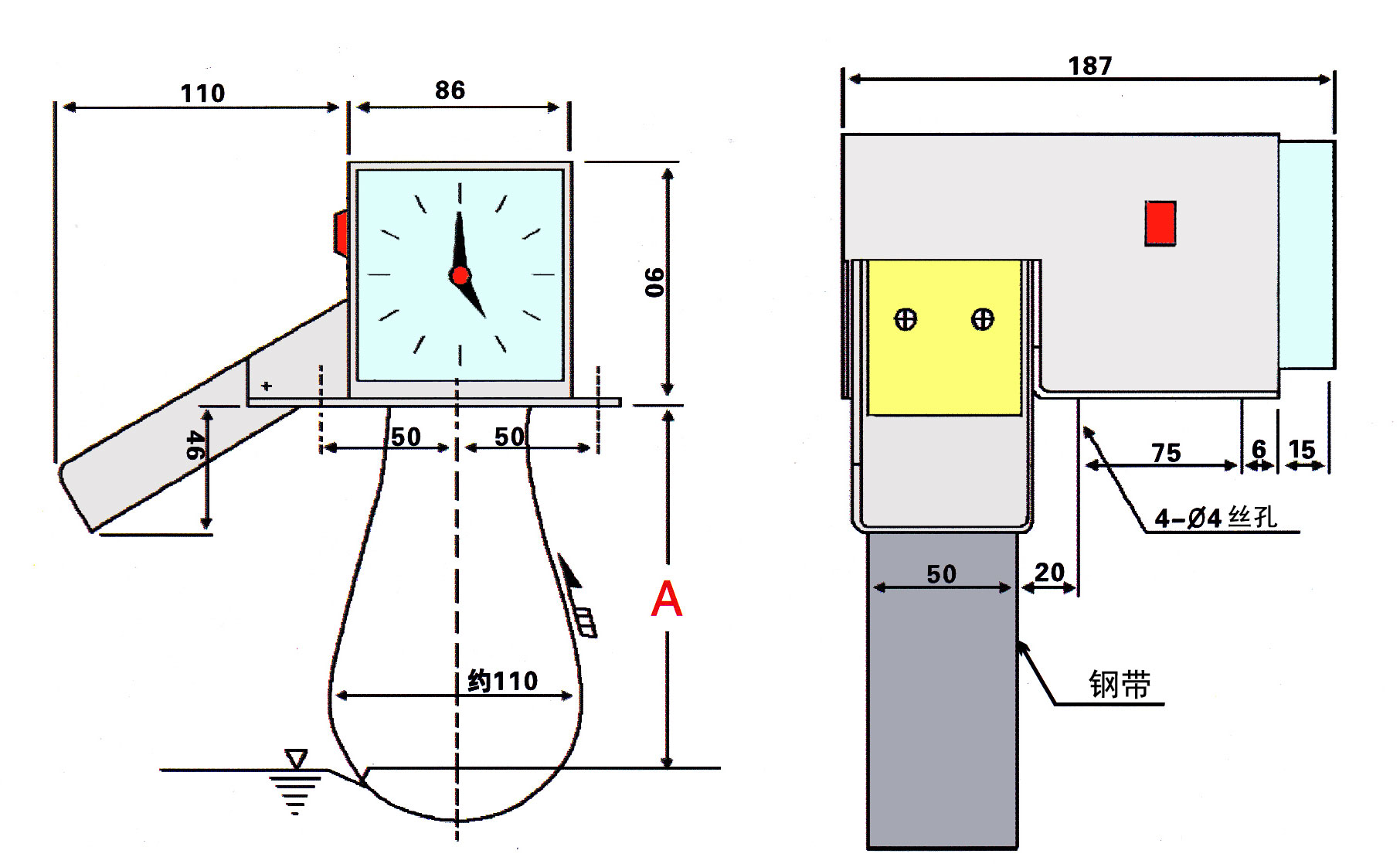

6. The length of the steel belt can be customized according to the Size A provided by the customer

Specifications:

1. Voltage: 220V (110V)/power: 10W

2. Oil scraping amount: 2L/H

3. Steel bandwidth: 50mm

4. Weight: 2KG
