带式油水分离机（刮油机、撇油机、浮油捞除机）广泛应用于数控机床、CNC加工中心、清洗机等机床中的水剂、乳化液中漂浮的油污自动分离出来，从而延长了冷却液的寿命，同时也延长了刀具的使用寿命，保证了加工精度。

工作原理：

利用油水之间不同重力和表面张力等特性，当刮油带穿过水面时，吸附并带走表面各种浮油



特点：

1.全不锈钢机身，特制亲油疏水不锈钢带

2.适用于室内大型清洗机、水箱、脱脂槽等处

3.安装简单，使用方便，可选装二次分油盒。

4.能耗低，效率高

5.可根据客户要求加装控制箱

6.钢带长度可根据客户提供水池深度定制



规格：

1.电压：220V/380V/三相220V

2.功率：40W

3.刮油量：10-55 L/H

4.钢带宽：100mm

5.重量：17KG

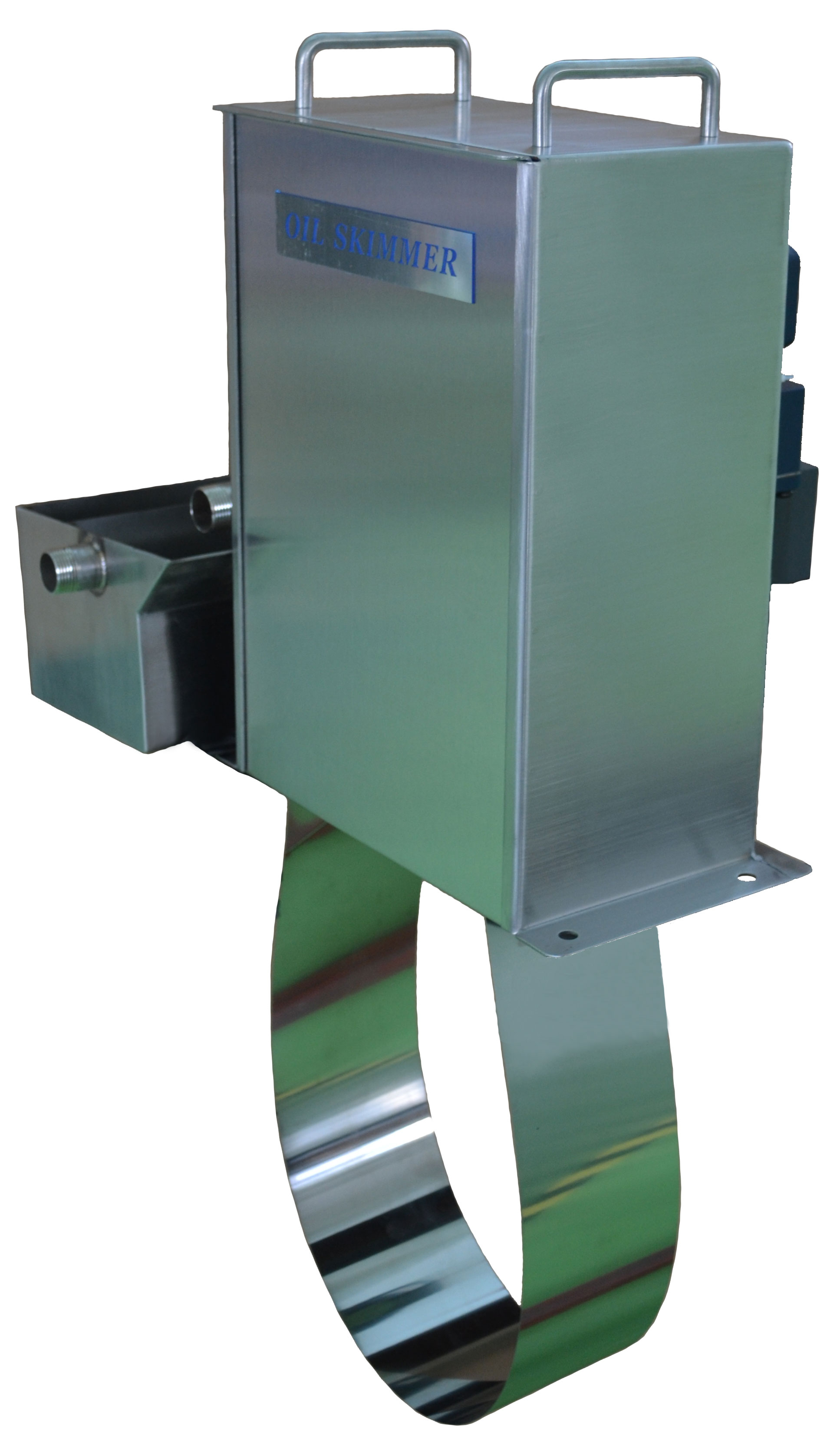

OS-4  OIL  SKIMMER



Belt type oil-water separator is widely used in CNC machine tools, CNC machining centers, cleaning machines and other machine tools in the water, oil floating in emulsion automatic separation, thus extending the life of the coolant, but also extend the service life of the tool, to ensure the processing accuracy.



Working principle:



Using the characteristics of different gravity and surface tension between oil and water, when the wiper belt passes through the water, it absorbs and takes away all kinds of floating oil on the surface







Features:



1. All stainless steel body, special oil-wet and water-repellent stainless steel belt



2. Suitable for indoor large cleaning machine, water tank, degreasing tank, etc



3. Simple installation, easy to use, optional installation of secondary oil distribution box.



4. Low energy consumption and high efficiency



5. Additional control boxes can be installed according to customer requirements



6. The length of the steel belt can be customized according to the depth of the pool provided by customers







Specifications:



1. Voltage: 220V/380V three-phase 220V



2. Power: 40W



3. Oil scraping amount: 10-55l /H



4. Steel bandwidth: 100mm



5. Weight: 17KG
